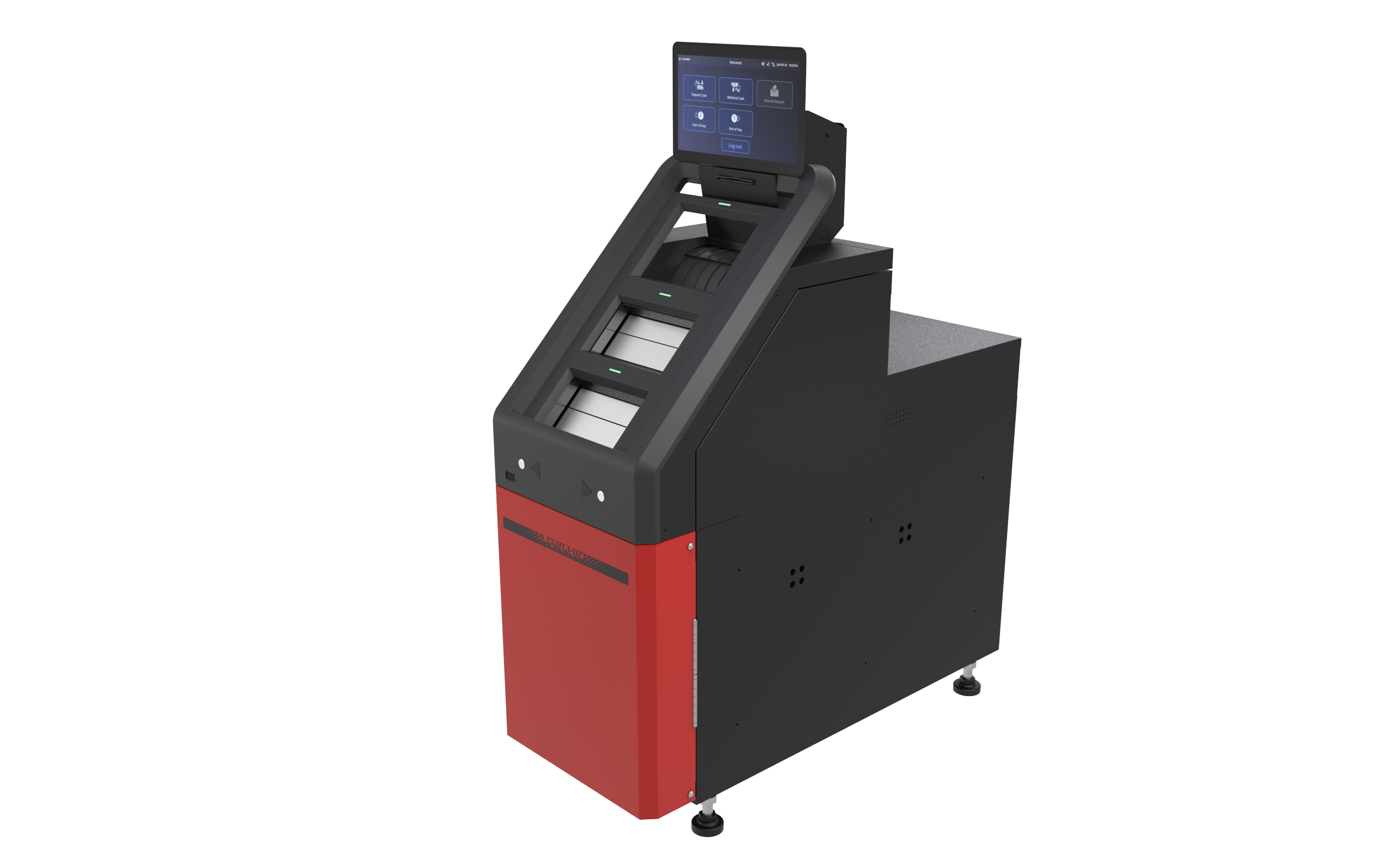

RAY One

Cash Recycler Series

RAY ONE is a powerful cash recycling solution for banks and high-volume cash environments, integrating the Copilot CR2 Coin Recycler. It processes notes at 12 per second, handles up to 17,000 notes across 4 recycling cassettes + 1 acceptance cassette, and supports continuous deposit mode for faster transactions.


Its innovative dual-user design lets two tellers operate simultaneously, while an intuitive touchscreen, bill-feeding buttons, 13-inch display, 3-inch thermal printer, and 2D scanner streamline deposits, dispensations, shift handovers, and cash flow tracking. With serial number recognition, intelligent sorting, optional fake-note reject box, multi-currency support, and UL 291 safety compliance, RAY ONE delivers maximum efficiency, security, and regulatory compliance.

RAY One
PRODUCT

mATERIALS

PRODUCT

SPECIFICATIONS

CATEGORYITEMParameter
CAPACITYCash-in slot≤ 300 circulating notes (With shutter)
*Equal to 600PCS new notes with thickness of 0.11mm
≤ 500 circulating notes (Without shutter)
* Equal to 1,100PCS new notes with thickness of 0.11mm
Cash-out slot≤ 300 circulating notes
SpeedDeposit/Withdraw : 12 notes/s
Escrow≤ 300 circulating notes
Acceptance Cassettes1AB / ≤3,400 new notes (thickness:0.11mm)
Recycling Cassettes4RBs / 4DRBs RB: ≤3,400 new notes (thickness:0.11mm) DRB:  Cassette 1 ≤ 1,800 new notes(thickness:0.11mm) Cassette 2 ≤ 450 new notes(thickness:0.11mm)
SPEEDBanknote Deposit720 notes /min.
Banknote Dispensing720 notes /min.
SUPPORTED FUNCTIONSMulti-currency ProcessingSupported
S/N ScanningSupported
SECURITYSafeUL291
OtherClass B Lock
CONNECTIVITYDisplay13" Full HD Touch Screen
InterfaceLAN
SYSTEMOperating SystemWindows
mCloudSupported
ADDITIONAL FEATURESBarcode Reader2D
Thermal Printer3"
DropboxOptional
PHYSICALDimensions (W) x (D) x (H)430 x 1268 x 1017 (w/ screen) 430 x 1092 x 1017 (w/out screen) 16 15/16" x 49 15/16" x 40" 16 15/16" x 43" x 40"
Net Weight400 Kg
Gross Weight420 Kg
POWERPower SupplyAC100V ~ 240V, 50/60Hz
Power Consumption Max. 500W
