User Friendly
• 7" Touch Screen
• Expandable UI Language
• Exchange Rate Billboard
LUMI comes with 2 modes, Detection and Deposit.
‧ Detection brings the best convenience into the cashier to do a fast-detect of banknotes.
‧ Deposit provides extra security by storing banknotes to the cassette/pouch/canvas bag after Detection.
Currency & Denomination
Detection
Deposit & Validate
Foreign Banknotes
Up to 1000 notes storage
Exchange Rate
Auto-calculation

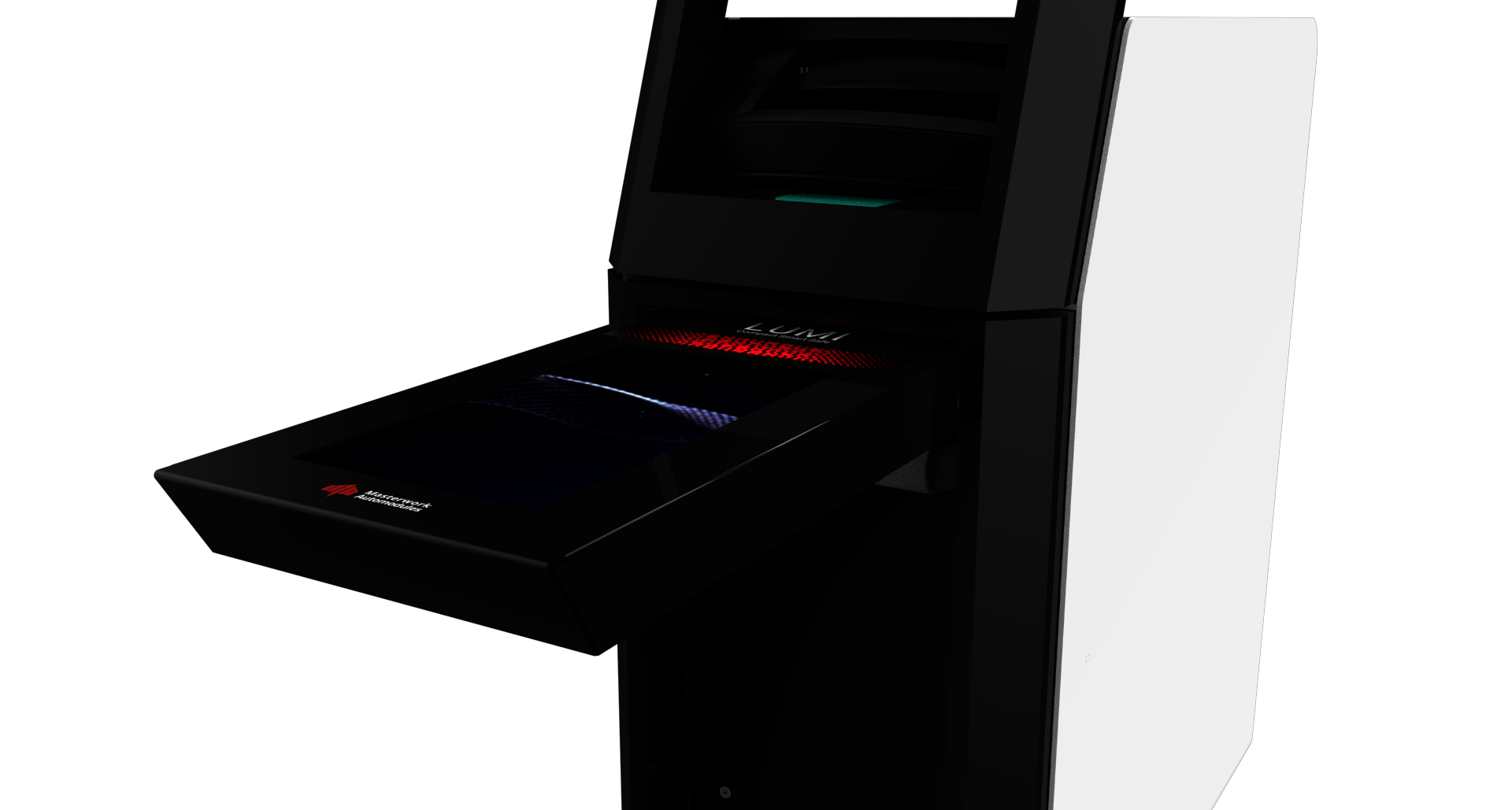

THE NEW HORIZON OF RETAIL CASH HANDLING
LUMI Compact Smart Safe is engineered to effectively accelerate and improve retail end-of-day accuracy along with banknote validation, reducing frauds and internal theft, it's all integrated INTO one to ease the intense cash processing.
Mulity currency
• Up to 32 currencies per unit
• 65 currencies ready
• many more to come
MA Cloud Compatibility
• Auto-sync or Manually Configured exchange rate/handling charge
• API integration is possible
• Capability of controlling multiple devices from MA Cloud
4-eye principle
• Requires OTP generated from MA Cloud as the first lock
• Password to the security door to the second lock
maintenance
The validator of LUMI comes with detachable design, which brings the max convenience for service purpose.
connectivity
Connectivity is even more flexible comparing to its predecessor.
Language selection
Input amount to
calculation
Upon agreement,
start inserting
foreign banknotes
Collect local
currency notes
Receipt printed
and complete
the transaction
Notes Storage Options

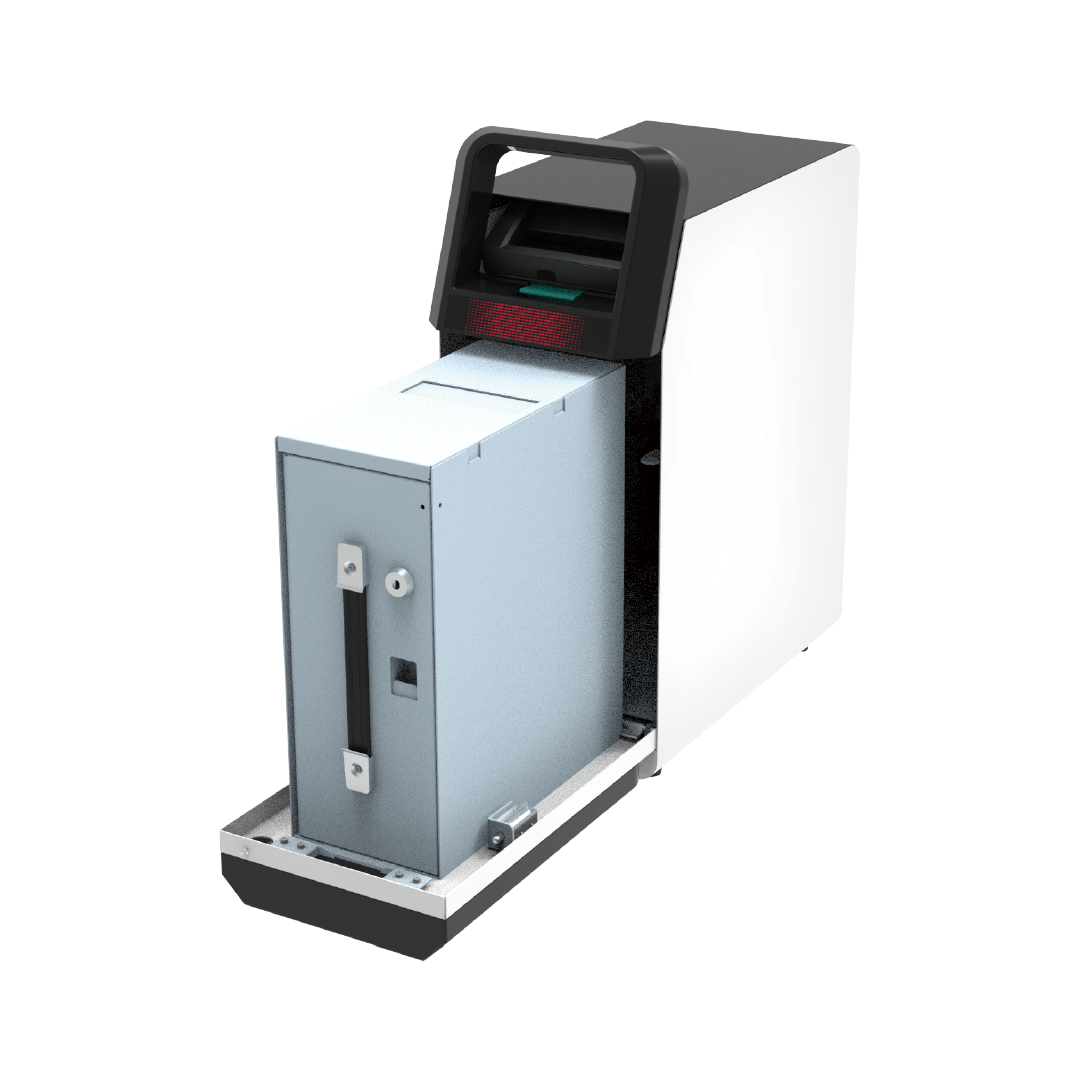

Cassette

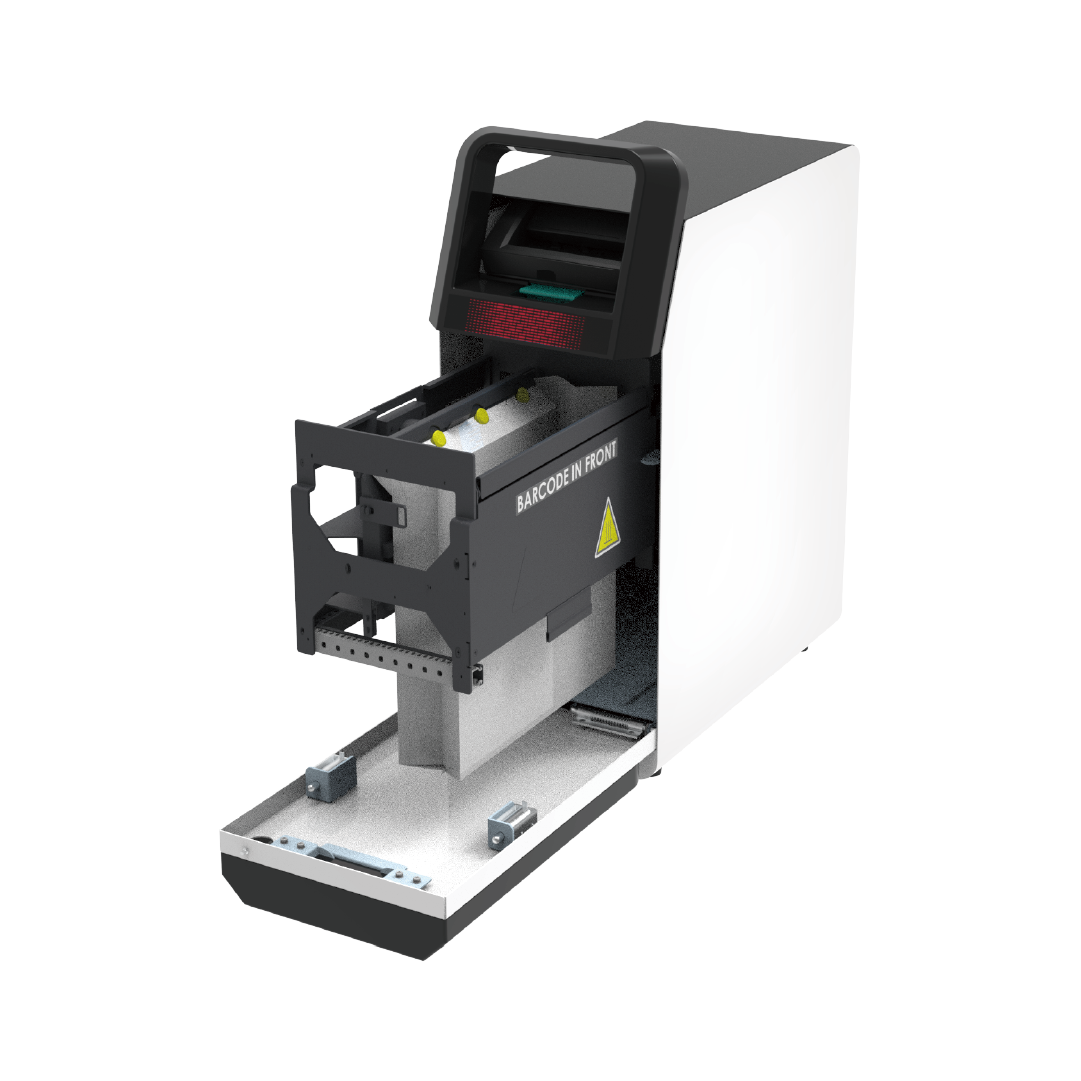

Pouch

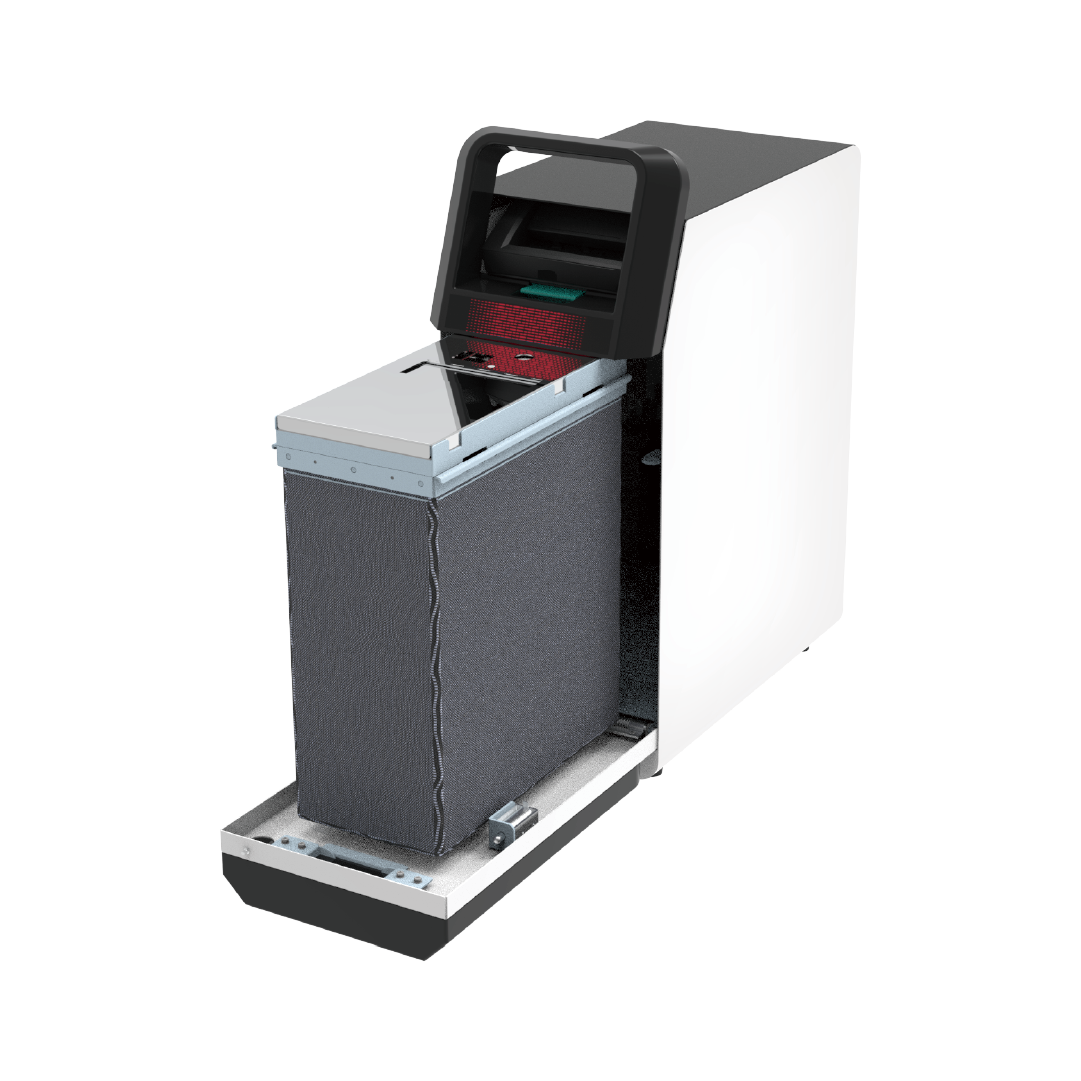

Canvas Bag

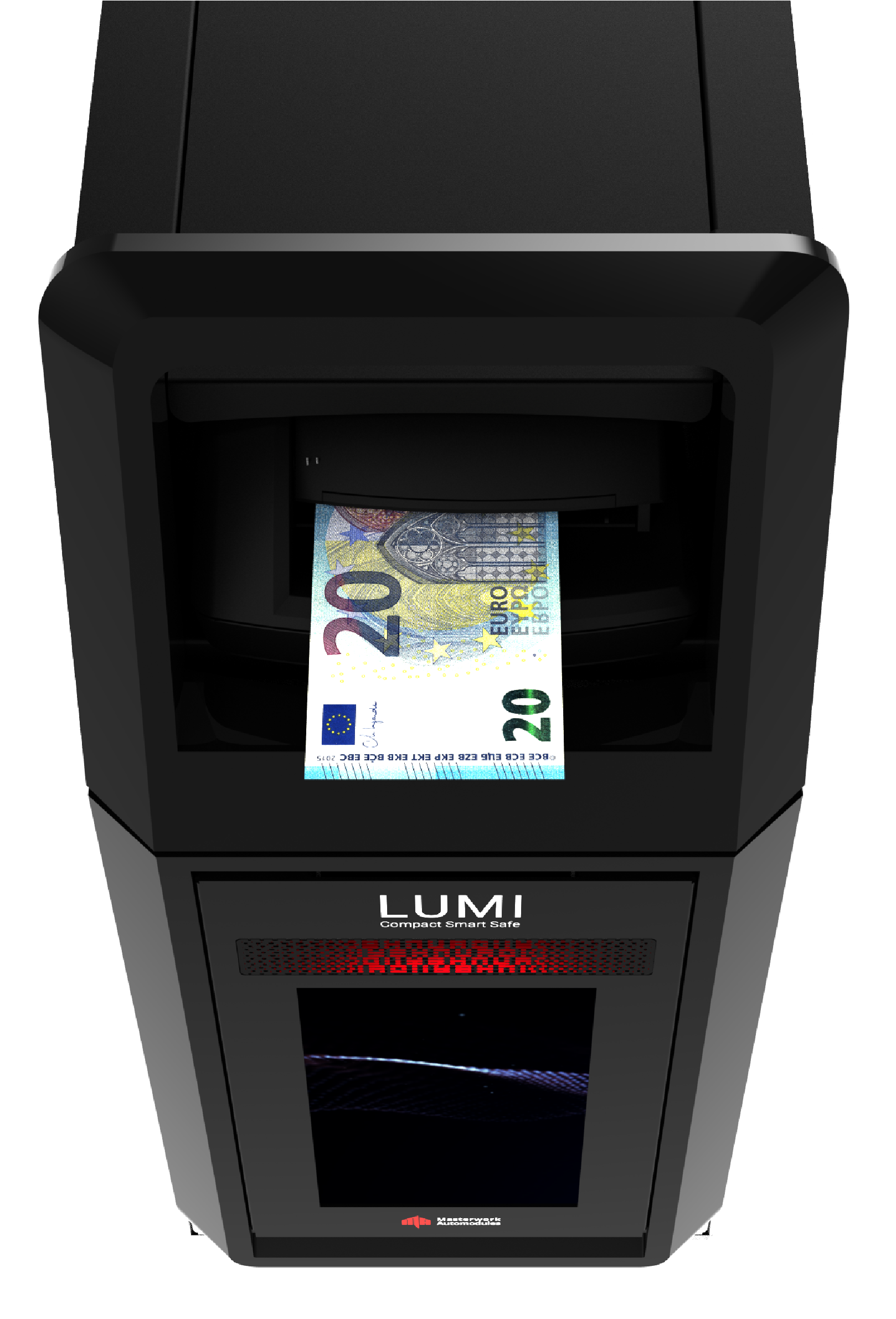

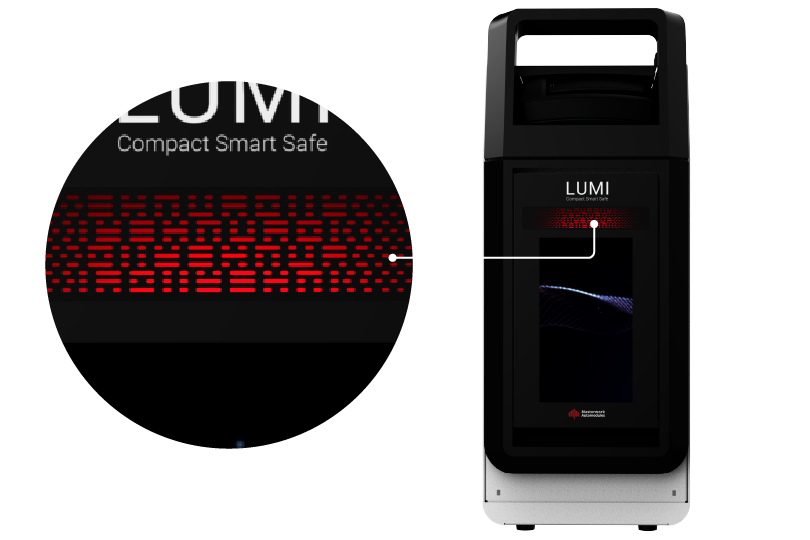

M-Bient User-Interactive Lighting
Inspired by the ancient Chinese binery "Ba-Gua" and form the pattern; breathing, twinkling and more to indicate the different status of the machine, enhancing user experience.
☷ ☶ ☵ ☴ ☳ ☲ ☱ ☰

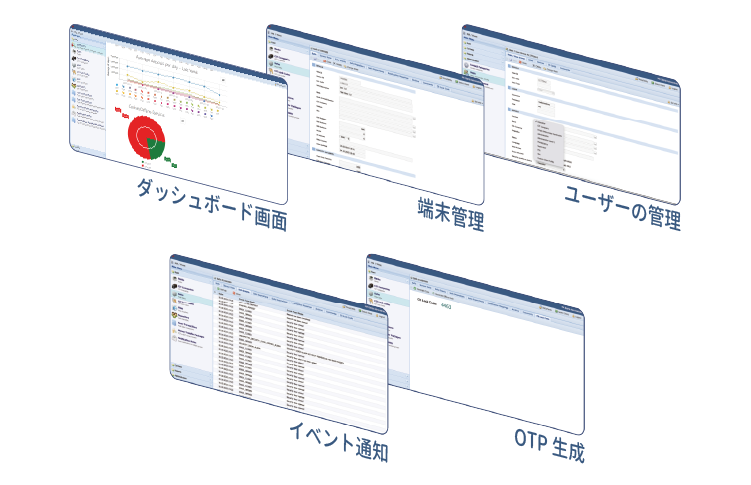

WORKS WITH MA CLOUD
MA Cloud is capable of collecting info that helps CIT/Retailor
to organize then optimize the entire procedure in a smarter
way. There's even more various of data that complete the
full functionality of LUMI with :
• Managements for User, Transaction, Safe, Deposit, CIT, Error
• Reports, Remote control, Preventive measures"
| Feeding | Single Note, 2 Note/Sec. | |
| Countable Note Size | 60 X 85 X 0.08mm ~ 100 X 190 X 0.12mm | |
| Currencies | 109 Templates available, max 32 per unit | |
| Detection Sensors | Magnetic, Infrared and Color | |
| Banknote Storage | MA Dual Pulse Sealing Polymer Bag (Pouch)
Anti-Exposure Canvas Bag Metal Cassette | |
| Capacity | Polymer 1000 notes
Canvas 1000 notes Cassette 1000 notes | |
| Safe Standard | Strong Box | |
| Interface | LAN, RS232, USB | |
| Operating System | Android | |
| Back End | MA Cloud | |
| Security | OTP, system monitoring, push message
and alarm on events. | |
| Dimension | Approx. 357 x 200 x 480 mm | |
| Weight | Approx. 12 Kg (Cassette) Approx. 13 Kg (Canvas) Approx. 15 Kg (Polymer) |
