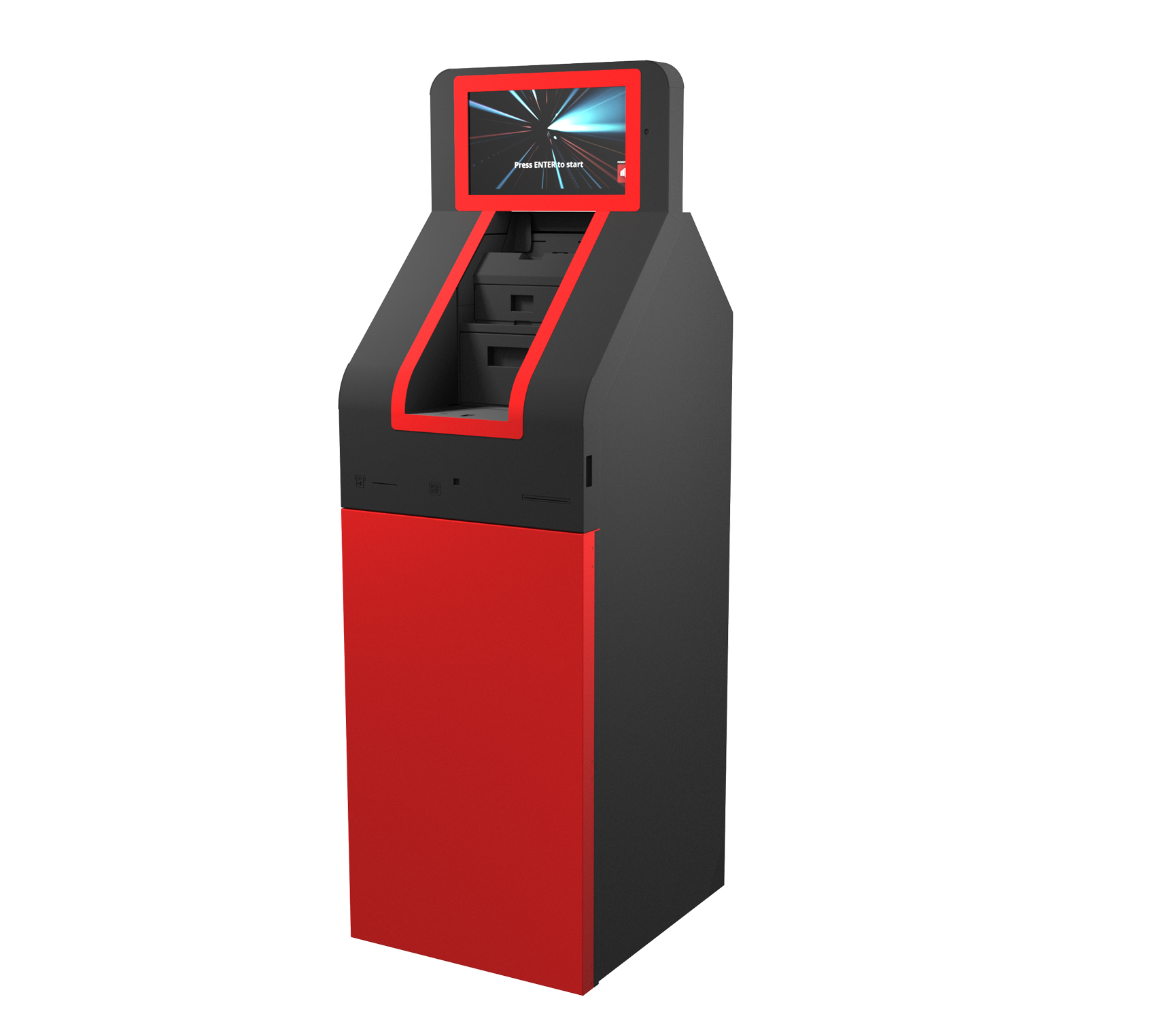

It is a compact freestanding lobby machine suitable for any location, indoor or outdoor. With the advanced banknote deposit modules, users are able to deposit cash in the shortest time. Unique design, intelligent software, high security level are the answers to new approach of cash depositing for both business and personal users.
|
|
|
|
|---|---|---|
|
|
Operating System | Windows 10 / KUAN Application / Cloud |
|
|
Detection | Banknote Authentication
Banknote SN Recognition |
|
|
Capacity | Hopper : 500 Banknotes
Escrow : 400 Banknotes Reject Pocket : 100 Banknotes Security Bag : 3000 / 5000 / 7000 / 10000 Notes Canvas Bag : 10000 / 15000 Notes Coin Box : 5000 Coins (KUAN Coins&Notes) |
| Depositing Speed | 1000 notes/min | |
| Countable Note Size | 60 x 85 x 0.08mm ~
100 x 190 x 0.12mm | |
| Display | 10.1" Touch Screen | |
| Safe Security Grade | Lock-1, M-Locks Vds Class II
Lock-2, M-Locks Vds Class II | |
| Security Bag Sealing | Impulse Sealing | |
| Client Printer | Thermal 58mm | |
| Power Supply | AC110V / 60Hz
AC240V / 50Hz | |
| Power Consumption | Idle 50W / Max. 100W | |
| Interface | LAN | |
| Barcode Reader | 1D, 2D (Optional) | |
| Consumption | Idle 50W / Max. 1000W | |
| Options | UL291 / CEN III / CEN IV Safe | |
| Dimensions(mm) | 600 x 800 x 1420 mm (KUAN Coins&Notes)
600 x 500 x 1420 mm | |
| Weight | 285~535 Kg |
